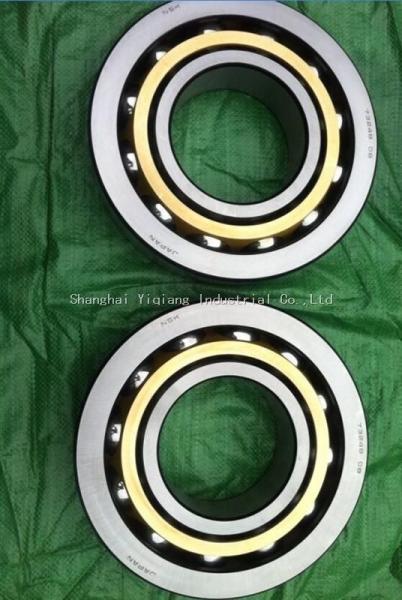

Angular Contact Ball Bearing 7228BDB,7230BDB,7232BDB

Ask Lasest Price
Model Number :	7228BDB,7230BDB,7232BDB
Price :	FOB
Delivery Time :	within one day
Payment Terms :	T/T In advance
Supply Ability :	5000PCS

Add to Cart

Product Details
Company Profile

Angular Contact Ball Bearing 7228BDB,7230BDB,7232BDB

Specifications

NSK 7907CDB 7908CDB 7909CDB bearing Angular Contact Bearing

Boundary dimensions(mm)					Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	2B	rs min	r1s min	Cr	Cor	Grease	Oil	(Approx.)	NSK

35	55	20	0.6	0.3	21.4	19.3	15,000	20,000	0.146	7907CDB
40	62	24	0.6	0.3	22.7	22.3	13,000	18,000	0.218	7908CDB
45	68	24	0.6	0.3	28.1	28.1	12,000	16,000	0.252	7909CDB

Production Introduction
Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient.
Retainers are made of brass, synthetic resins or others subject to individual bearing features and application conditions.

Angular contact ball bearing include:
1) Single row angular contact ball bearing
2) Matched angular contact ball bearing
3) Double row angular contact ball bearing
4) Four-point contact ball bearing

Angular contact ball bearings features :
1) Load capacities are higher than deep groove ball bearings of same dimensions;
2) Used for bearing radial-axial combined loads or pure thrust loads;
3) Low operating friction and high limiting speed.

Specifications:

7000 7200 7300 7400 71901
7001 7201 7301 7401 71902
7002 7202 7302 7402 71903
7003 7203 7303 7403 71904
7004 7204 7304 7404 71905
7005 7205 7305 7405 71906
7006 7206 7306 7406 71907
7007 7207 7307 7407 71908
7008 7208 7308 7408 71909
7009 7209 7309 7409 71910
7010 7210 7310 7410 71911
7011 7211 7311 7411 71912
7012 7212 7312 7412 71913
7013 7213 7313 7413 71914
7014 7214 7314 7414 71915
7000 7200 7300 7400 71901
7001 7201 7301 7401 71902
7002 7202 7302 7402 71903
7003 7203 7303 7403 71904
7004 7204 7304 7404 71905
7005 7205 7305 7405 71906
7006 7206 7306 7406 71907
7007 7207 7307 7407 71908
7008 7208 7308 7408 71909
7009 7209 7309 7409 71910
7010 7210 7310 7410 71911
7011 7211 7311 7411 71912
7012 7212 7312 7412 71913
7013 7213 7313 7413 71914
7014 7214 7314 7414 71915
7000 7200 7300 7400 71901
7001 7201 7301 7401 71902
7002 7202 7302 7402 71903
7003 7203 7303 7403 71904
7004 7204 7304 7404 71905
7005 7205 7305 7405 71906
7006 7206 7306 7406 71907
7007 7207 7307 7407 71908
7008 7208 7308 7408 71909
7009 7209 7309 7409 71910
7010 7210 7310 7410 71911
7011 7211 7311 7411 71912
7012 7212 7312 7412 71913
7013 7213 7313 7413 71914
7014 7214 7314 7414 71915

Boundary dimensions(mm)					Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	2B	rs min	r1s min	Cr	Cor	Grease	Oil	(Approx.)
10	26	16	0.3	0.15	7.5	4.15	23,000	31,000	0.046	7000DB
12	28	16	0.3	0.15	8.2	4.9	21,000	28,000	0.05	7001DB
60	110	44	1.5	1	100	98	5,300	7,000	1.53	7212DB
65	120	46	1.5	1	103	105	4,200	5,600	1.962	7213BDB
65	120	46	1.5	1	114	116	4,900	6,500	1.924	7213DB
70	125	48	1.5	1	112	116	3,900	5,200	2.22	7214BDB
70	125	48	1.5	1	124	127	4,500	6,000	2.18	7214DB
75	130	50	1.5	1	116	124	3,700	4,900	2.38	7215BDB
75	130	50	1.5	1	128	137	4,200	5,600	2.34	7215DB
80	140	52	2	1	131	139	3,400	4,600	2.84	7216BDB
80	140	52	2	1	145	152	3,900	5,300	2.78	7216DB
85	150	56	2	1	146	161	3,200	4,300	3.64	7217BDB
85	150	56	2	1	162	177	3,700

Angular Contact Ball Bearing 7228BDB,7230BDB,7232BDB
